Product type:Temperature fuse Thermal Cutoff - RY metal shell fuse | hot fusing body
Name:SWC temperature fuse
Item:variety of specifications
Description:

南韩S.W.C温度保险丝

 韩国星宇SWC温度保险丝/SWC temperature fuse
产品编号：
 SWC
产品名称：
 南韩SWC温度保险丝
产品类别：
 温度保险丝(热熔断器)

    产 品 说 明
电气额定值
额定电压    250VAC（and 125VAC）
额定电流    10安培 (and 15A)
◎ 额定温度范围
Cat NO.
Tf
Cutoff temperature
Th
K-mark
UL
C-UL
VDE
TUV
CCC
PSE
SW-102T
  72℃
 70℃+2℃,-2℃
57℃
●
●
●
●
●
●
●
SW-105T
 77℃
 77℃+0℃,-4℃
62℃
●
●
●
●
●
●
●
SW-109T*
 84℃
 84℃+0℃,-5℃
69℃
●
●
●
●
●
●
●
SW-152T
 90℃
 90℃+0℃,-4℃
75℃
●
●
●
●
□
□
●
SW-106T
 91℃
  91℃+0℃,-4℃
76℃
●
●
●
●
□
□
●
SW-153T
  93℃
  93℃+0℃,-5℃
78℃
●
●
●
●
□
□
●
SW-104T
 98℃
 98℃+2℃,-2℃
83℃
●
●
●
●
●
●
●
SW-108T*
100℃
 100℃+0℃,-5℃
85℃
●
●
●
●
●
●
●
SW-110T*
109℃
109℃+0℃,-5℃
94℃
●
●
●
●
●
●
●
SW-111T
121℃
121℃+0℃,-5℃
106℃
●
●
●
●
●
□
●
SW-115T
126℃
126℃+0℃,-4℃
111℃
●
●
●
●
●
●
●
SW-129T
128℃
128℃+0℃,-5℃
113℃
●
●
●
●
●
●
●
SW-114T*
139℃
139℃+0℃,-4℃
124℃
●
●
●
●
●
●
●
SW-138T
144℃
144℃+0℃,-5℃
127℃
●
●
●
●
●
●
●
SW-116T
152℃
152℃+0℃,-4℃
137℃
●
●
●
●
●
●
●
SW-120T
167℃
167℃+0℃,-4℃
152℃
●
●
●
●
●
●
●
SW-118T
169℃
169℃+0℃,-5℃
154℃
●





●
SW-127T
184℃
184℃+0℃,-6℃
169℃
●
●
●
●
●
●
●
SW-122T
192℃
192℃+3℃,-3℃
177℃
●





●
SW-125T
195℃
195℃+0℃,-6℃
180℃
●
●
●
●
●
●
●
SW-139T
216℃
216℃+0℃,-6℃
200℃
●
●
●
●
●
□
●
SW-124T
228℃
228℃+0℃,-6℃
200℃
●
●
●
●
●
□
●
SW-128T*
240℃
240℃+0℃,-6℃
200℃
●
●
●
●
●
●
●
UL file NO : E126429  ● = Approved  □ = Applied
*Dual Rations(UL approved) - 250V 10A and 125V 15A
 ◎ 电气参数

额定电压 : 250V, AC (and 125V)
额定电流 : 10A (and 15A)
频率 : 50 or 60Hz
最大允许插入电流 : 250V, ac 15A
瞬间过载电流 : DC电流脉冲，峰值150 A 接通3 毫秒后间隔10 秒。可至少通过100个循环的测试。

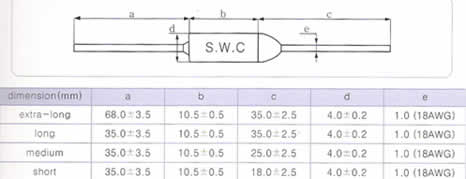

  ◎ 构造


韩国星宇SWC温度保险丝/SWC temperature fuse

73度99度77度94度113度121度133度142度157度172度192度216度227度240度
 70度77度84度92度95度105度110度115度121度128度130度139度141度144度152度157度169度184度185度192度216度227度228度240度250度280度320度
温度保险丝|热保护器|温度熔断器|热熔断体 韩国星宇 SWC温度保险丝 SW 10A 15A 250V
Cat NO. Tf Cutoff temperature Th K-mark UL C-UL VDE TUV CCC MITI
SW-102T   72度SW-105T  77度SW-109T*  84度SW-152T  90度SW-106T  91度
SW-153T   93度SW-104T  98度SW-108T* 100度SW-110T* 109度SW-111T 121度SW-115T 126度 常州胜名电子（盛威尔电子）欢迎洽谈
SW-129T 128度SW-114T* 139度SW-138T 144度SW-116T 152度SW-120T 167度SW-118T 169度
SW-127T 184度SW-122T 192度SW-125T 195度SW-139T 216度SW-124T 228度SW-128T* 240度
　
