Product type:Current | fuse | insurance tube fuse - Glass / ceramic fuse (tube)
Name:Glass/ceramic fuse 5*20
Item:5.0*20
Description:
特性
     高分断能力,加强分断能力, 低分断能力可供选择;直接焊接或可插拔式; 国际认证; 世界范围内可使用.
     应用
     电信产品; 机器; 机车; 灯饰; 仪器; 家用电器;游戏设备; 电源设备;

盛威尔电子,玻璃/陶瓷保险丝管5*20,

盛威尔电子,玻璃/陶瓷保险丝管5*20,


产品型号: 51TM,52TM 5.2φ20
产品名称: 玻璃保险丝管(速断型)




产品详细描述: 产品型号:
PRODUCT TYPE:
51TM,52TM 5.2φ×20
玻璃保险丝管(速断型)GLASS TUBE FUSE(FAST-BLOW)
认证 APPROVALS
UL:100mA~7A 250V/125V
CUL:100mA~7A 250V/125V

分断电流:
INTERRUPTING RATING:
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-8A)

电气特性:
ELECTRICAL CHARACTERISTICS:
额定 RATING 熔断时间 BLOWING TIME
100% 4 hours Min(大于4小时)
135% 1 hour Max(小于1小时)
200% 5 sec Max(小于5秒)

盛威尔电子,玻璃/陶瓷保险丝管5*20,

盛威尔电子,玻璃/陶瓷保险丝管5*20,

PRODUCT TYPE:51DT,52DT 5.2φ×20
玻璃保险丝管(中等延时型)GLASS TUBE FUSE(MEDIUM SLOW-BLOW)

认证 APPROVALS
UL:100mA~6.3A 250V/125V
CUL:100mA~6.3A 250V/125V

分断电流:
INTERRUPTING RATING:
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-8A)

电气特性:
ELECTRICAL CHARACTERISTICS:
额定 RATING 熔断时间 BLOWING TIME
100% 4 hours Min(大于4小时)
135% 1 hour Max(小于1小时)
200% 120 sec Max(小于120秒)
1000% 10 ms Min(大于10毫秒)


盛威尔电子,玻璃/陶瓷保险丝管5*20,

盛威尔电子,玻璃/陶瓷保险丝管5*20,


产品详细描述: 产品型号:
产品型号: 51T,52T 5.2φ×20
产品名称: 玻璃保险丝管(延时型)

产品详细描述: 产品型号:
PRODUCT TYPE:
51T,52T 5.2φ×20
玻璃保险丝管(延时型)GLASS TUSE FUSE(SLOW-BLOW)




认证 APPROVALS
UL:100mA~6.3A 250V/125V
CUL:100mA~6.3A 250V/125V

分断电流:
INTERRUPTING RATING:
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-8A)

电气特性:
ELECTRICAL CHARACTERISTICS:
额定 RATING 熔断时间 BLOWING TIME
100% 4 hours Min(大于4小时)
135% 1 hour Max(小于1小时)
200% 120 sec Max(小于120秒)
1000% 10 ms Min(大于10毫秒)

盛威尔电子,玻璃/陶瓷保险丝管5*20,

盛威尔电子,玻璃/陶瓷保险丝管5*20,

产品型号: 50D, 5.2φ×20
产品名称: 玻璃保险丝管(速断型)

产品详细描述:
产品型号:
PRODUCT TYPE:
50D. φ5.2×20
玻璃保险丝管(速断型)GLASS TUBE FUSE(FAST-BLOW)

认证 APPROVALS
UL:125mA~6.3A 250V
VDE:200mA~6.3A 250V
CCC:200mA~6.3A 250V

分断电流:
INTERRUPTING RATING:
35A OR 10In WHICHEVER IS GREATER

电气特性:
ELECTRICAL CHARACTERISTICS:
额定 RATING 熔断时间 BLOWING TIME
2.1In 30 min Max(小于30分)
2.75In 50ms~2s
4In 10ms~300ms
10In 20ms Max(小于20毫秒)


盛威尔电子,玻璃/陶瓷保险丝管5*20,

盛威尔电子,玻璃/陶瓷保险丝管5*20,


产品型号: 50W.5.2φ×20
产品名称: 玻璃保险丝管(延时型)




产品详细描述: 产品型号:
PRODUCT TYPE:
50W.5.2φ×20
玻璃保险丝管(中等延时型)GLASS TUBE FUSE(MEDIUMSLOW-BLOW)

认证 APPROVALS
UL:200mA~15A 250V
VDE:315mA~6.3A 250V
CCC:315mA~6.3A 250V

分断电流:
INTERRUPTING RATING:
35A OR 10In WHICHEVER IS GREATER

电气特性:
ELECTRICAL CHARACTERISTICS:
额定 RATING 熔断时间 BLOWING TIME
2.1In 2 min Max(小于2分)
2.75In 600ms~10s
4In 150ms~3s
10In 20ms~300ms

盛威尔电子,玻璃/陶瓷保险丝管5*20,

盛威尔电子,玻璃/陶瓷保险丝管5*20,

产品型号: 50AF 5.2φ×20
产品名称: 瓷保险丝管(速断型)

产品详细描述: 产品型号:
PRODUCT TYPE:
50AF 5.2φ×20
瓷保险丝管(速断型)CERAMIC TUBE FUSE(QUICK-ACTING)
认证 APPROVALS
UL:500mA~6.3A 250V
VDE:500mA~6.3A 250V
CCC:500mA~6.3A 250V

分断电流:
INTERRUPTING RATING:
1500A at 250V AC

电气特性:
ELECTRICAL CHARACTERISTICS:
额定 RATING 熔断时间 BLOWING TIME
2.1In 30 Min Max(500mA~3.15A)/30 Min Max(4A~6.3A)
2.75In 10 ms~2s(500mA~3.15A)/10 ms~3s(4A~6.3A)
4In 3 ms~300 ms(500mA~3.15A)/3 ms~300 ms(4A~6.3A)
10In 20 ms Max(500mA~3.15A)/20 ms Max(4A~6.3A)


盛威尔电子,玻璃/陶瓷保险丝管5*20,

盛威尔电子,玻璃/陶瓷保险丝管5*20,

产品型号: 50NT 5.2φ×20
产品名称: 瓷保险丝管(延时型)

产品详细描述: 产品型号:
PRODUCT TYPE:
50NT 5.2φ×20
瓷保险丝管(延时型)CERAMIC TUBE FUSE(TIME-LAG)

认证 APPROVALS
UL:1A~6.3A 250V
VDE:1A~6.3A 250V
CCC:1A~6.3A 250V




分断电流:
INTERRUPTING RATING:
1500A at 250V AC

电气特性:
ELECTRICAL CHARACTERISTICS:
额定 RATING 熔断时间 BLOWING TIME
2.1In 30min Max(1A~3.15A) / 30min Max(4A~6.3A)
2.75In 1s~80s(1A~3.15A) / 1s~80s(4A~6.3A)
4In 95ms~5s(1A~3.15A) / 150ms~5s(4A~6.3A)
10In 10ms~100ms(1A~3.15A) / 20ms~100ms(4A~6.3A)

盛威尔电子,玻璃/陶瓷保险丝管5*20,

USL(-A)* 63mA-400mA/250V/慢断/低 BC* 玻璃 VDE/UR/CSA/CCC/BSI/S/IMQ Y
UTE(-A)* 500mA-10A/250V/慢断/低 BC* 玻璃 VDE/UR/CSA/CCC/BSI/S/IMQ Y
UFE(-A)* 63mA-10A/250V/快断/低 BC* 玻璃 VDE/UR/CSA/CCC/BSI/S/IMQ Y
UDL(-A)* 500mA-6.3A/250V/慢断/增强 BC* 玻璃 VDE/UR/CCC Y
UDA(-A)* 500mA-10A/250V/慢断/高 BC* 陶瓷 VDE/UR/CSA/CCC/BSI/S/IMQ/PSE Y
UBM(-A)* 63mA-10A/250V/快断/高 BC* 陶瓷 VDE/UR/CSA/CCC/BSI/S/IMQ Y
GTE(P)* 10mA-10A/250V/慢断 玻璃 UL/CSA/PSE Y
GFE(P)* 10mA-10A/250V/快断 玻璃 UL/CSA/PSE Y
GD(P)*A 10mA-15A/250V/慢断 陶瓷 UL/CSA/PSE Y
GBM(P)* 10mA-15A/250V/快断 陶瓷 UL/CSA/PSE Y
FSC 250mA-15A/125/250V/快断/高 BC* 陶瓷 VDE/UR/CSA/CCC/BSI/S/PSE Y FSC
FSD 200mA-15A/125/250V/快断/低 BC* 玻璃 VDE/UR/CSA/CCC/BSI/S/PSE Y FSD
TSC 100mA-15A/250V/慢断/高 BC* 陶瓷 VDE/UR/CSA/CCC/BSI/S/PSE Y TSC
TSD 100mA-15A/250V/慢断/低 BC* 玻璃 VDE/UR/CSA/CCC/BSI/S/PSE Y TSD
SIC 100mA-7A/125/250V/慢断 玻璃 UL/CSA/PSE Y SIC
CIS 100mA-10A/250V/快断 玻璃 UL/CSA/PSE Y CIS
SIP 100mA-7A/125/250V/慢断/带帽引线 玻璃 UL/CSA/PSE Y SIP
CSP 100mA-10A/250V/快断/带帽引线 玻璃 UL/CSA/PSE Y CSP
----- ---- ---- ---- --- ----

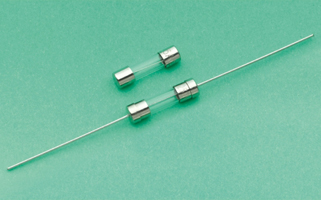

5.2 x 20mm, F (32mA,50mA,100mA,125mA,160mA,200mA,250mA,
300mA,315mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA,
1A,1.25A,1.6A,2A,2.5A,3A,3.15A,3.5A,4A,5A,6A,7A,8A,10A)125V/250V,
Fast Acting, Cartridge Glass Tube Fuses/with Pigtail, UL/CSA/PSE Approved
5.2 x 20mm, T (32mA,50mA,100mA,125mA,160mA,200mA,250mA,
300mA,315mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA,
1A,1.25A,1.6A,2A,2.5A,3A,3.15A,3.5A,4A,5A,6A,7A,8A,10A) 125V/250V,
Time-lag, Cartridge Glass Tube Fuses/with Pigtail, UL/CSA/PSE Approved

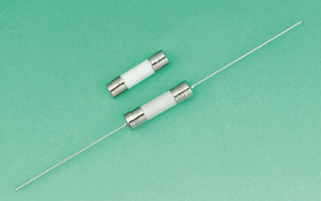

5.2 x 20mm, F (32mA,50mA,100mA,125mA,160mA,200mA,250mA,
300mA,315mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA,
1A,1.25A,1.6A,2A,2.5A,3A,3.15A,3.5A,4A,5A,6A,7A,8A,10A)125V/250V,
Fast Acting , Cartridge Ceramic Tube Fuse/With pigtail, UL/CSA Approved
5.2 x 20mm, F (250mA,315mA,400mA,500mA,630mA,800mA,1A,1.25A,1.6A,
2A,2.5A,3.15A,4A,5A,6.3A)250V,
Fast Acting, Cartridge Ceramic Tube Fuses/With pigtail, UR/CSA/SEMKO/VDE/BSI/PSE/CCC Approved
5.2 x 20mm, T (250mA,315mA,400mA,500mA,630mA,800mA,1A,1.25A,1.6A,
2A,2.5A,3.15A,4A,5A,6.3A)250V,
Time-lag, Cartridge Ceramic Tube Fuses/With pigtail, UR/CSA/SEMKO/VDE/BSI/PSE/CCC Approved
